名称：直线轴承(轻负荷) |
|
简介：ST型直线轴承适用于轻载荷、长行程的情况。轴径范围：φ6~φ100 |
价格： 022-27695336 022-27695326 |
|
|
|
|
|
|
|
|

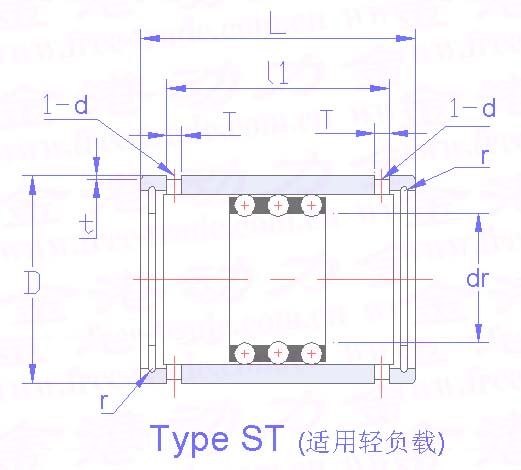

ST系列 |
内径 |
外径 |
长度 |
重量 |
|
|
|
|
|
型号 |
最大行程 |
动载荷 |
静载荷 |
dr |
公差 |
D |
公差 |
L |
公差 |
g |
l1 |
T |
t |
d |
r |
C(KN) |
C0(KN) |
ST 6 |
14 |
0.98 |
0.23 |
6 |
+0.018
+0.010 |
12 |
0
-0.008 |
19 |
0
-0.2 |
8.0 |
13.5 |
1.1 |
0.25 |
- |
0.3 |
ST 8 |
24 |
0.98 |
0.27 |
8 |
+0.022
+0.013 |
15 |
24 |
16.4 |
20.1 |
1.5 |
0.5 |
1.5 |
0.5 |
ST 10 |
30 |
2.35 |
0.62 |
10 |
19 |
0
-0.009 |
30 |
31.5 |
25.7 |
1.5 |
0.5 |
1.5 |
0.5 |
ST 12 |
32 |
4.02 |
1.08 |
12 |
+0.027
+0.016 |
23 |
32 |
47 |
27.5 |
1.5 |
0.5 |
1.5 |
0.5 |
ST 16 |
40 |
4.02 |
1.27 |
16 |
28 |
37 |
77 |
32.1 |
1.5 |
0.5 |
1.5 |
0.5 |
ST 20 |
54 |
4.12 |
1.57 |
20 |
+0.033
+0.020 |
32 |
0
-0.011 |
45 |
109 |
39.8 |
2 |
0.5 |
2 |
0.5 |
ST 25 |
54 |
4.12 |
1.76 |
25 |
37 |
45 |
0
-0.3 |
128 |
39.8 |
2 |
0.5 |
2 |
1 |
ST 30 |
82 |
9.31 |
4.12 |
30 |
45 |
65 |
240 |
58.5 |
2.5 |
0.5 |
2.5 |
1 |
ST 35 |
92 |
9.41 |
4.51 |
35 |
+0.041
+0.025 |
52 |
0
-0.013 |
70 |
370 |
63.5 |
2.5 |
0.7 |
2.5 |
1.5 |
ST 40 |
108 |
12.5 |
6.18 |
40 |
60 |
80 |
570 |
73.3 |
2.5 |
0.7 |
2.5 |
1.5 |
ST 45 |
108 |
12.6 |
6.76 |
45 |
65 |
80 |
625 |
73.3 |
2.5 |
0.7 |
2.5 |
1.5 |
ST 50 |
138 |
16.3 |
8.82 |
50 |
72 |
100 |
910 |
92.4 |
3 |
1 |
3 |
1.5 |
ST 55 |
138 |
16.6 |
9.71 |
55 |
+0.049
+0.030 |
80 |
100 |
1270 |
92.4 |
3 |
1 |
3 |
2 |
ST 60 |
138 |
16.8 |
10.5 |
60 |
85 |
0
-0.015 |
100 |
1360 |
92.4 |
3 |
1 |
3 |
2 |
ST 70 |
138 |
16.9 |
11.7 |
70 |
95 |
100 |
0
-0.4 |
1530 |
92.4 |
3 |
1 |
3 |
2 |
ST 80 |
132 |
21.3 |
15.3 |
80 |
110 |
100 |
2220 |
92 |
3 |
1.5 |
3 |
2 |
ST 90 |
132 |
21.7 |
16.9 |
90 |
+0.058
+0.036 |
120 |
100 |
2440 |
92 |
3 |
1.5 |
3 |
2 |
ST 100 |
132 |
22.0 |
18.3 |
100 |
130 |
0
-0.018 |
100 |
2670 |
92 |
3 |
1.5 |
3 |
2 |
|
|
|
|
|
|
|
|
|
|
|
